Project Overview

This customer is a large-scale biomass energy enterprise in Thailand, specializing in biomass power generation raw material processing and forestry waste recycling, as a core supplier in the local biomass energy industry chain.

The customer’s original screening equipment faced bottlenecks including insufficient capacity, frequent screen blockage, unstable grading accuracy, and failure to meet long-term continuous production requirements. After multiple

rounds of technical comparison and scheme verification, the customer finally selected our customized Fully Balanced Square Gyratory Screen for precise grading and standardized processing of wood chip materials.

 Material Parameters & Process Requirements

Material Name: Industrial Wood Chips for Biomass Power Generation

Bulk Density: 380~450 kg/m³

Grading Standard: Qualified Material 0~40mm, Over-sized Material ＞40mm, No Fine Material Screening Required

Design Capacity: 40 Tons Per Hour

Working Condition: 24-hour continuous industrial operation, high stability, low failure rate, strong environmental adaptability

   Equipment Configuration Schem

Based on the customer’s material characteristics, capacity demand and local production conditions in Thailand, we provide a customized screening solution with core configuration as follows:

Screen Mesh Size: 2 inches special wear-resistant screen

        Screen Layers: Single layer

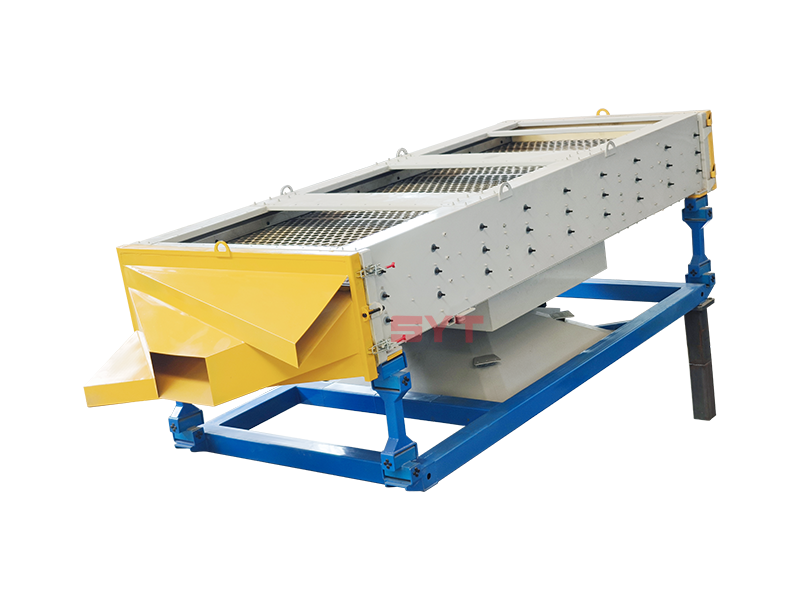

        Core Equipment: Fully Balanced Square Gyratory Screen

Structure Design: Fully balanced dynamic drive, low vibration, low noise, uniform stress, high impact resistance

Core Advantages: Anti-screen blinding, no material winding, stable operation, easy maintenance, suitable for light and loose material screening

  Project Performance & Advantages

The equipment stably maintains a processing capacity of 40 tons per hour for a long time, supports 24-hour uninterrupted operation, no material accumulation, no shutdown due to blockage, and perfectly matches the rhythm

of automatic production line.

Adopting artificial simulated reciprocating rotary screening principle, materials are evenly spread on the screen surface with stable running track. The qualified wood chips of 0~40mm have a high screening penetration rate, and

over-sized materials are completely separated without mixing, fully meeting the quality requirements of biomass power generation raw materials.

It effectively solves industry pain points such as wood chip fiber winding, screen bridging and easy hole blocking. It can adapt to high-temperature continuous operation environment in Thailand, with low equipment wear, long service

life and less daily maintenance, greatly reducing the customer's later operation cost.

We provide overseas customers with complete English technical documents, remote installation guidance, professional after-sales technical support and global spare parts supply, creating a full-cycle reliable service system.

  Case Summary

This Thailand biomass energy project is a typical application of our Fully Balanced Square Gyratory Screen in the field of clean energy in Southeast Asia. Aiming at the special working conditions of wood chips with bulk density of

380~450kg/m³, large capacity of 40 tons per hour and precise classification of 0~40mm, the equipment performs excellently in operation stability, screening efficiency and durability.

We have always been committed to the R&D and innovation of industrial screening technology, providing reliable, efficient and customized industrial screening solutions for global customers in biomass energy, wood processing,

 mining, chemical and other industries.If you have screening needs, please contact us.
