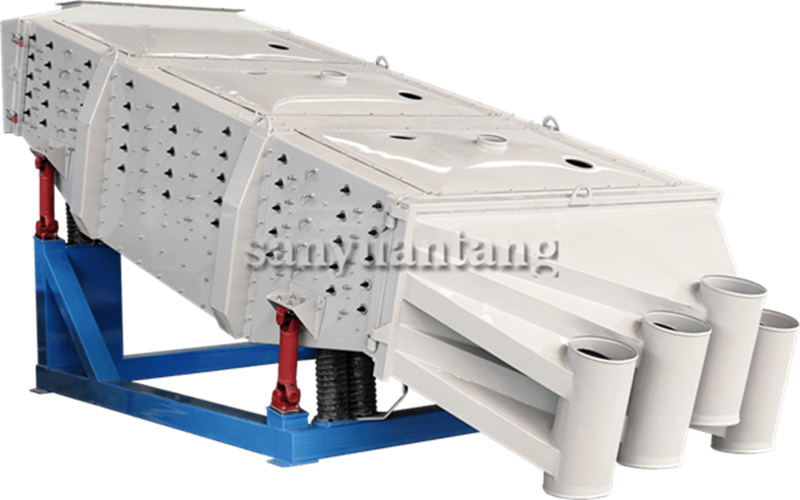

The probability vibrating screen is a specialized screening equipment. This structure is based on the compact square swing screen with a larger inclination angle, which makes the material discharge faster and is suitable for materials that are easy to screen, have larger particle sizes, and have higher output. It will be a replacement for the traditional probability screen.
Multi-Stage Screening
Multi-stage classification of machine-made sand or natural sand, the screening mesh size: 5mm~2.36mm~1.2mm~0.6mm, some special mortars have been screened to 0.3mm~0.15mm~0.075mm.
High Cost Performance
absorbing advanced technologies at home and abroad, continuous research and development and on-site verification, successfully replacing expensive imported equipment in the production line of dry mortar.
Large Output
The output of the probability screen can reach more than 100 tons per hour, and a single unit can complete the production capacity of multiple ordinary vibrating screens.
Custom Design On Demand
It can be designed as five-layer and multi-stage classification, fast net change, the rear end and front discharge port of the equipment are all detachable designs, and each layer of the screen can be quickly replaced.
Energy Saving And Environmental Protection
Fully enclosed structure, the upper cover of the probability screen equipment is designed with a dust removal device, which can be easily connected to the on-site dust removal equipment to meet the requirements of dust-free screening.
Large Electrostatic Spray Molding Process
Large electrostatic spray molding process, the equipment is more beautiful, wear-resistant, and rust-proof.
The probability vibrating screen works like a rectangular gyrtatory sifter, using the probability screening principle with multi-layer screens (3-6 layers),
a large inclination angle 15°, and large mesh sizes.
The probability vibrating screen operates by shaking the screen box back and forth, causing material to move in a gyratory motion.
Smaller particles fall through the screen holes to the lower layer, while larger particles are discharged, completing the screening.
Screen box
The main part of the swing probability vibrating screen, with a built-in vibrator and screen, achieves material screening through vibration.
Vibrator
The power source, usually installed inside or near the screen box. Drive the screen box to swing, driving the screen to screen the material.
Screen
Located inside the screen box, the screens the material according to the particle size. The mesh size of the screen (i.e., the size of the screen hole) can be selected according to different screening requirements.
Support spring
Located between the screen box and the base, it is used to support the screen box and reduce vibration transmission and noise.
Drive device
Electric or hydraulic, it produces a swinging motion to make the screen shake up and down.
Model | Screen size | Screening area | Screen inclination | Layers |
| FYBS1536 | 1.5*3.5 m | 4.5-9 m2 | 15 | 1-10 |
| FYBS2040 | 2.0*4.0 m | 8-9 m2 | 15 | 1-10 |
| Support customization | - | - | - | - |
Building materials industry:dry mortar, machine-made sand, natural sand, quartz sand, perlite, dolomite, calcite, feldspar and other stone powders and mineral powders.
Food industry:grading of granular sugar, raw salt and edible salt.
Other industries:sieve granular materials with a pore size of 0.5~10mm, and the loose density of the material is better than 0.8.
Thirty years of dedication have allowed us to accumulate extensive production and service experience, enabling us to solve various challenges in powder processing for our numerous clients.
Innovation is the lifeblood of our company's development. To date, we have obtained over 40 domestic and international patents, with many of our products holding multiple patents.
We specialize in undertaking the design and production of fine powder processing production lines, offering a one-stop service from crushing, screening, conveying, feeding, mixing to packaging.
Upon receipt of the products, detailed English user manuals are provided. For relatively complex installations or product usage, video installation guidance is available. For large-scale technical projects, we can dispatch professional technical personnel for on-site installation guidance.
